The GoBright Interact is a versatile and interactive hardware device developed by GoBright that can be used for both Room Booking and Desk Booking. It allows the user to create detailed bookings and view
existing bookings.
The GoBright Interact has a 3.46’’ LCD capacitive touch panel and a LED light to share
visual information of the status of the resource.
The dimensions on the Interact device are:
Width - 10 cm
Depth - 12,5 cm
Height - 3,3 cm
Mounting Options
The Interact can be mounted underneath or on top of a desk, on a partition wall, or on meeting room walls. Thanks to its compact design, the Interact is also perfect to attach to silence pods, office cabins or other workspaces.
Desk mounting:
- Under the desk with the Desk Slide Mount Kit;
- Fixed on top of the desk using the included back-plate;
- Optionally with the Expansion Box for Linak to control the desk height.
Wall mounting:
- Wall mount: Use the included back-plate
- Glass mount: the optional Glass Mount Kit is needed.
There is always at least one cable connected to the Interact.
Connecting options - Network
The Interact can be connected to the network in two different ways:
- WiFi: Connecting to WiFi requires 2.4 GHz network with WPA 2 with SSID and Password enabled.
Open the WiFi with MAC address filter.

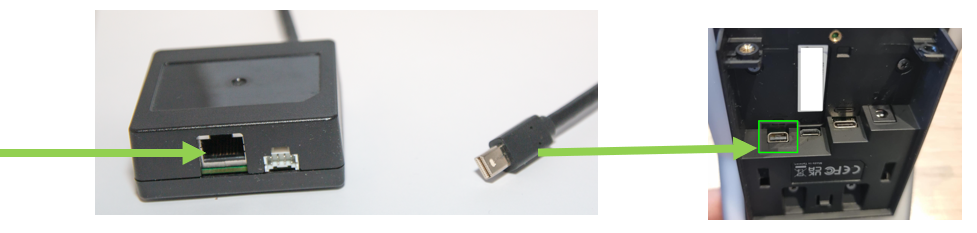

- LAN: Connecting to LAN requires the Expansion Box and a LAN (cat-5 or 6) cable.
Firewall settings:
Important: When using an Interact, the firewall must be configured to allow outbound traffic over MQTT (port 8883) over TLS. NTP and DNS must also be correctly configured for the device to communicate with the GoBright platform. The firewall configuration can be found here.
Product Specifications Summary
| Article | GoBright Interact - 5 units in one package |
| Accessories | |
| INT1-ADAPT_MULTI | Power Adapter for Interact Device (EU/UK/US Plug) |
| PWR-CABLE-USB-C | USB-C to DC jack Power Cable |
| INT1-MOUNT-DESK | Desk Slide-in Mount Kit for Interact Device |
| INT1-MOUNT-GLASS | Glass Mount Kit for Interact Device |
| PoE/Desk control extension for Interact Device | |
| External PIR Sensor for Interact Device | |
| Technics | |
| Inputs | USB-C |
| Networking | 2.4 GHz WiFi and/or PoE |
| Actuator systems | LINAK CBD6S control box, LINAK DL series (with DC T-splitter) |
| NFC/RFID | NFC and RFID 13.56 MHz reader (ISO/IEC 14443A/B), supports, MIFARE 4K/1K card (does not support ISO/IEC 15693 or MIRFARE Ultralight C) |
| Power | Po5V@3A |
| Power source options | Adapter, USB to jack cable and PoE |
| General | |
| Guarantee | 1 year |
| Certifications | CE, FCC, IC, MIC, BSMI, NCC |
| Mounting options | Desk, wall, glass window |
| Dimensions Interact | |
| Width | 10 centimeters |
| Depth | 12,5 centimeters |
| Height | 3,3 centimeters |
| Display Interact | 3,46" LCD capacitive touch panel |
| Compatible Platforms | |
| Room booking | Microsoft Exchange/Office 365 and Google Workspace |
