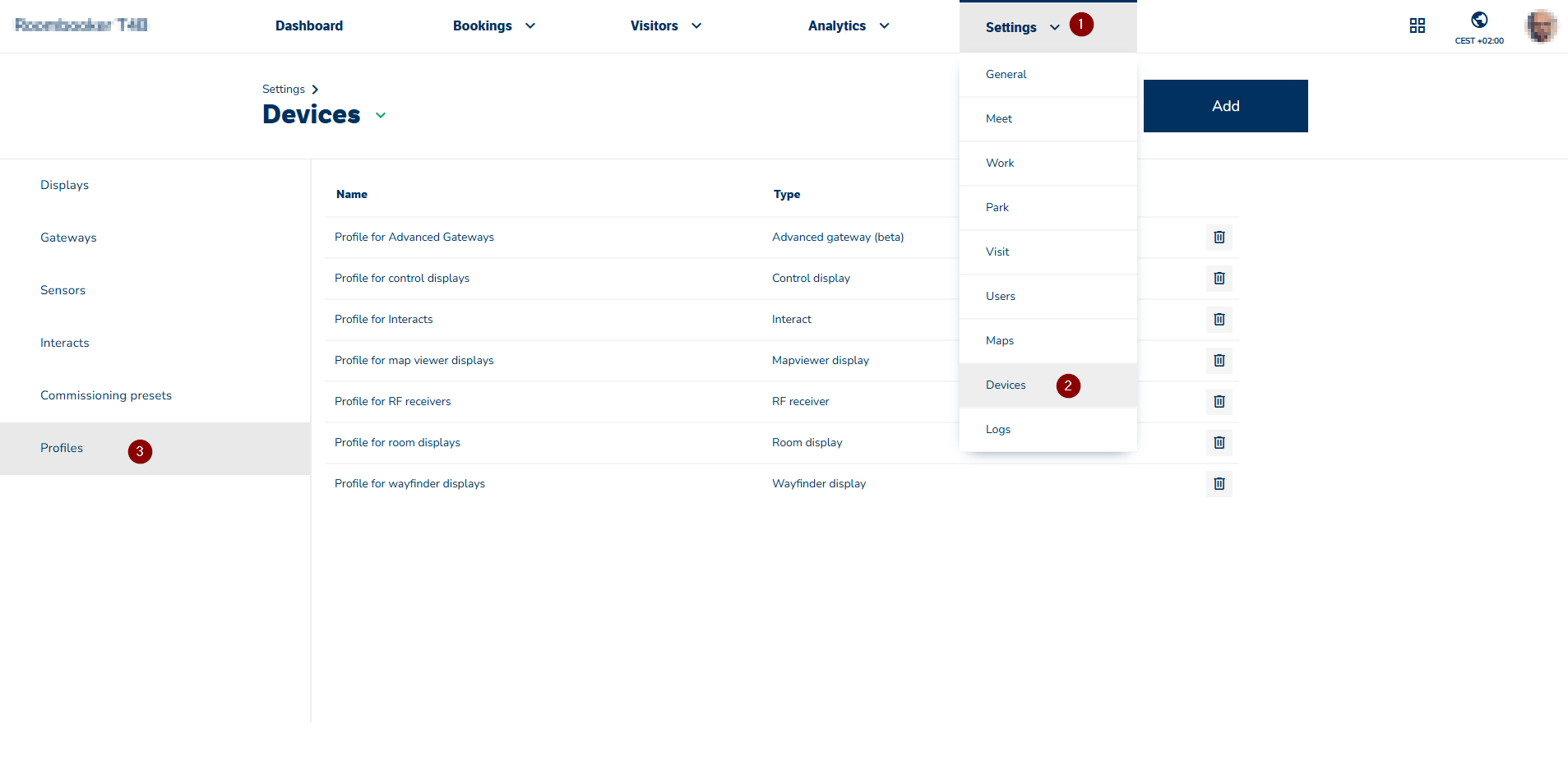

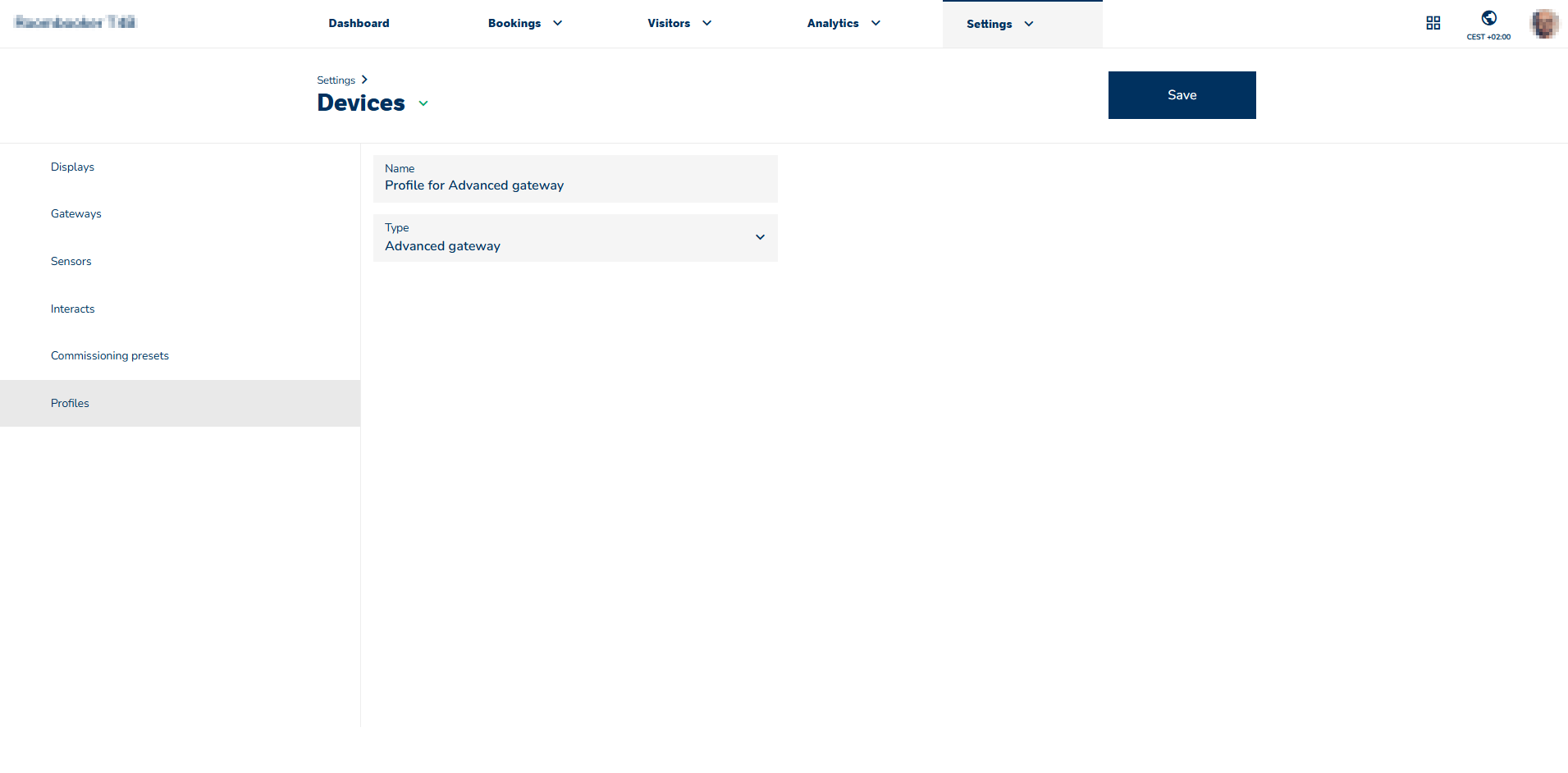

The Advanced Gateway profile can be configured in the GoBright portal. Navigate to Settings > Devices > Profiles and select 'Add' to create a new profile.

Enter the required details, such as the Profile Name, and select Advanced Gateway as the device type, and then Save the new profile.

After creating the Advanced Gateway profile, you can optionally create a Commissioning Preset to simplify and standardize the installation process.

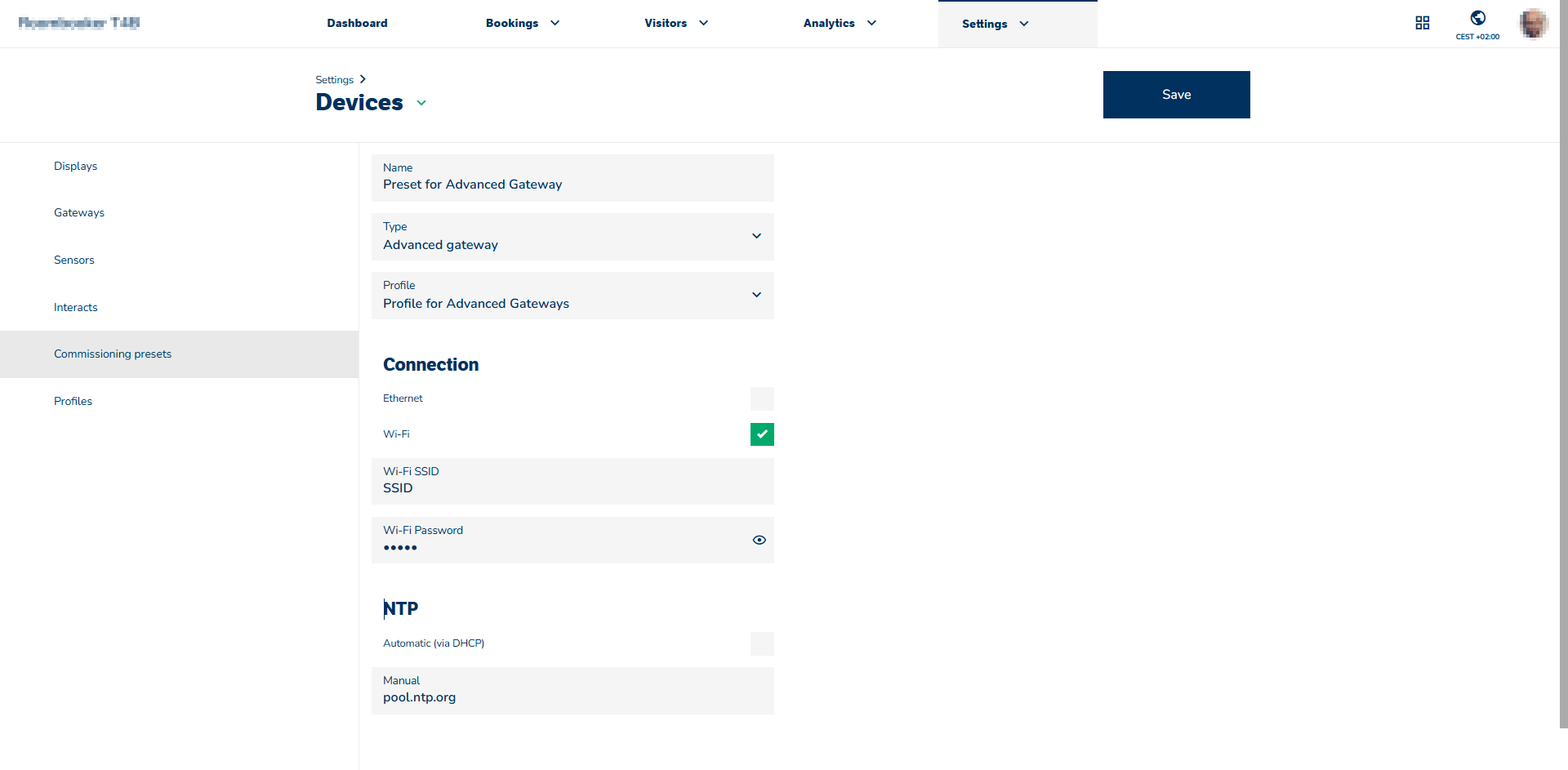

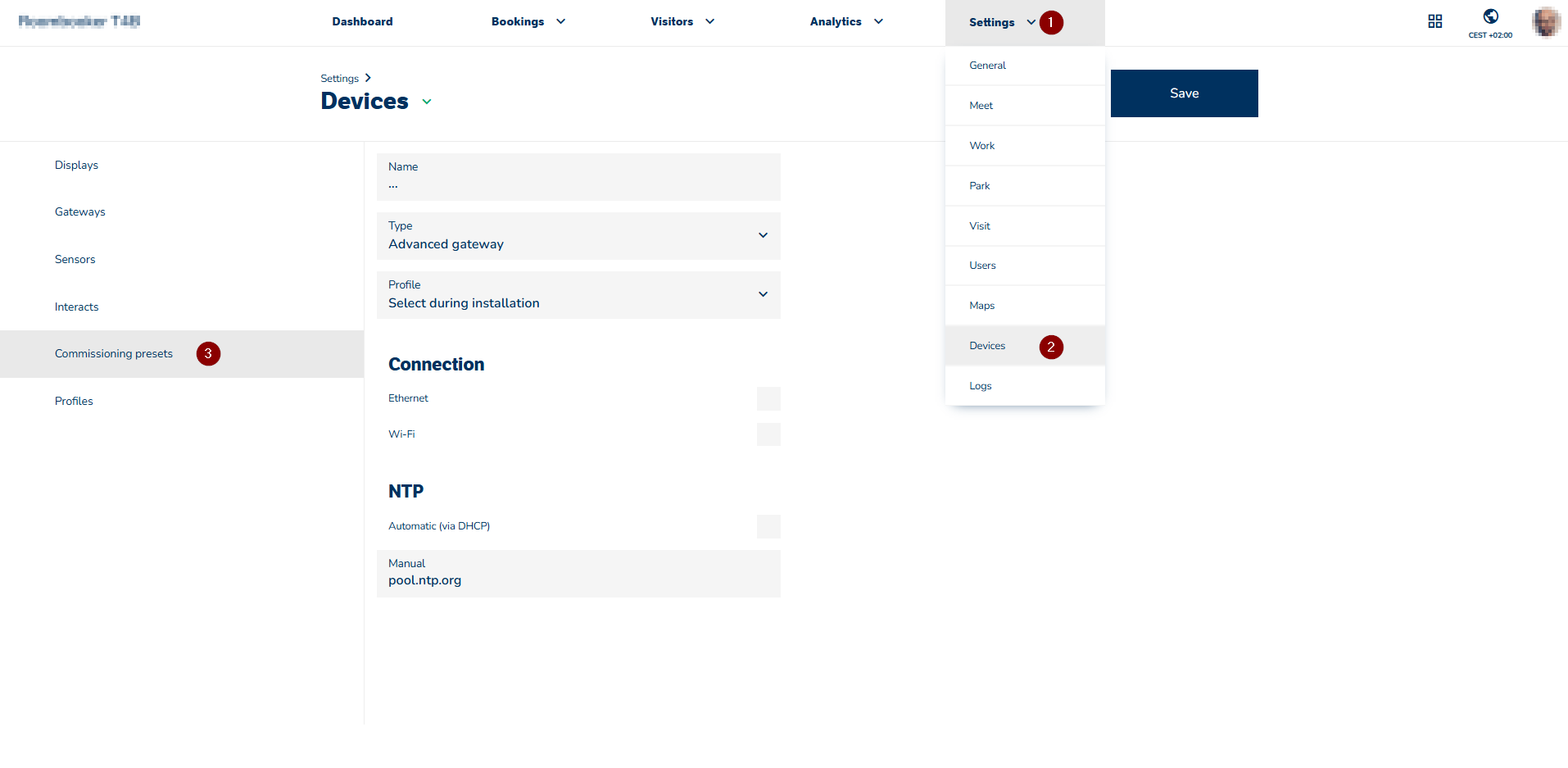

Navigate to Settings > Devices > Commissioning Presets and select 'Add' to create a new preset.

Configure the required settings:

• Name - Enter a clear and recognizable name for the preset.
• Type - Select Advanced Gateway.
• Profile - Select the Advanced Gateway profile to be applied or choose the profile during installation.
• Ethernet connection - ON/OFF - Enable or disable the Ethernet connection.
• Wi-Fi connection - ON/OFF - Enable or disable Wi-Fi. When enabled, configure the required Wi-Fi settings.
• NTP settings - Choose between automatic NTP configuration or enter a manual NTP server (for example: pool.ntp.org).

Once saved, the Commissioning Preset can be used during the commissioning process to quickly apply the predefined configuration to the Advanced Gateway.

Connect the Advanced Gateway to a power source to start the device. Wait until the device has fully powered on and is ready for commissioning before continuing with the setup process in the GoBright mobile app.

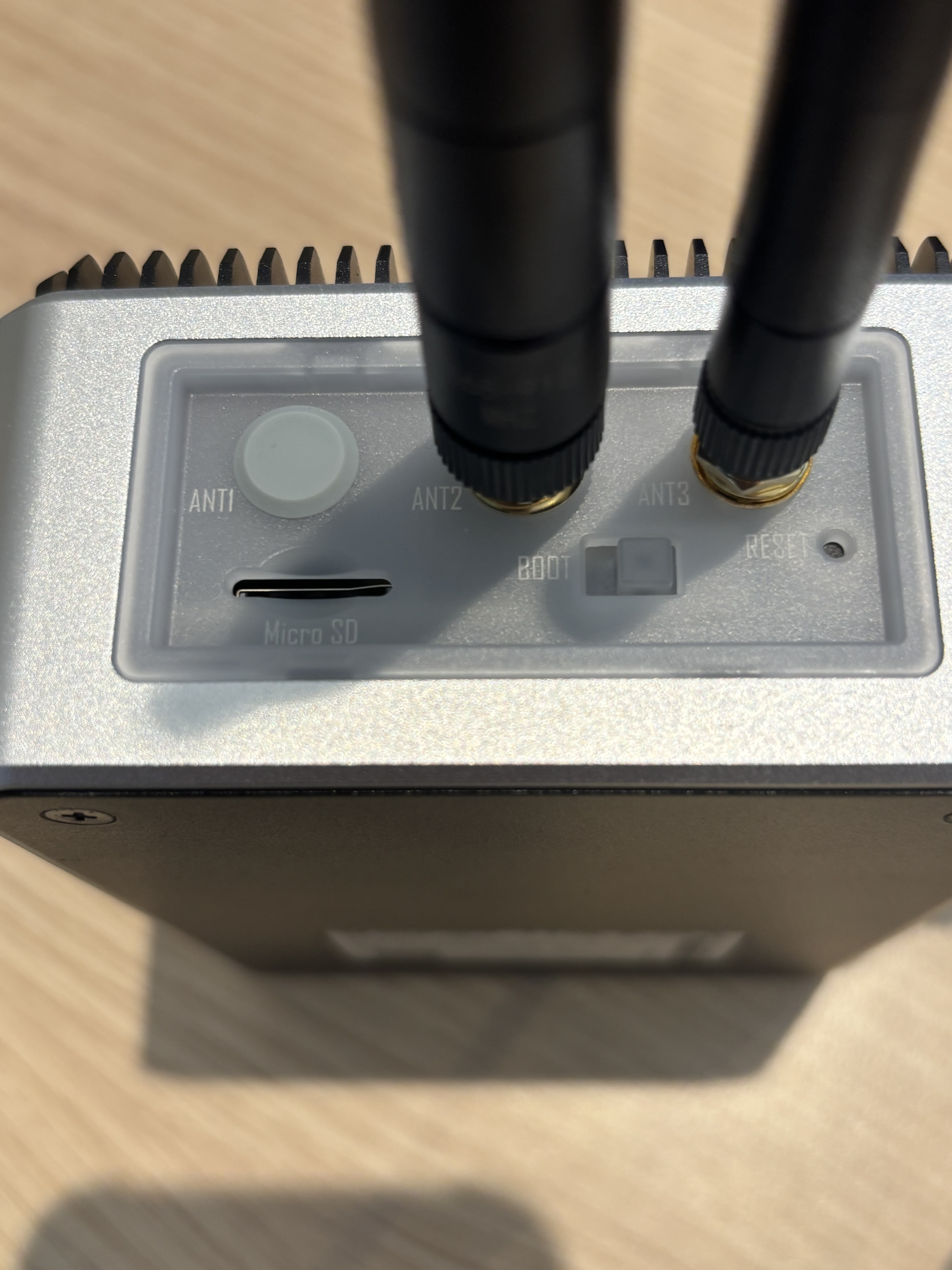

1.  Ensure the switch on top of the Advanced Gateway is set away from 'BOOT' before powering on the device.

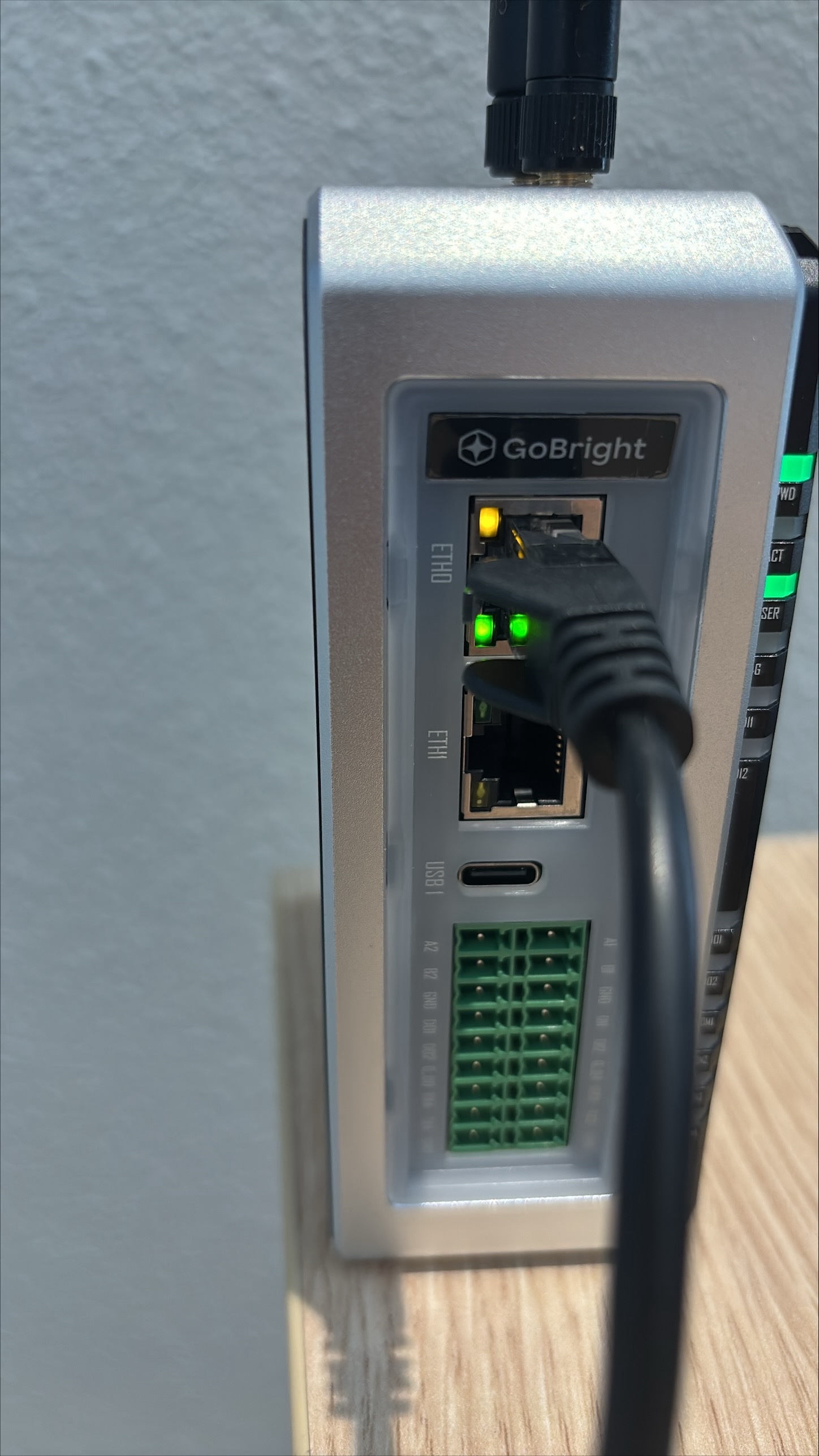

2. Power the Advanced Gateway using one of the following options:

• PoE+ (30W) connection via the ETH0 port. The required connector is included in the package.

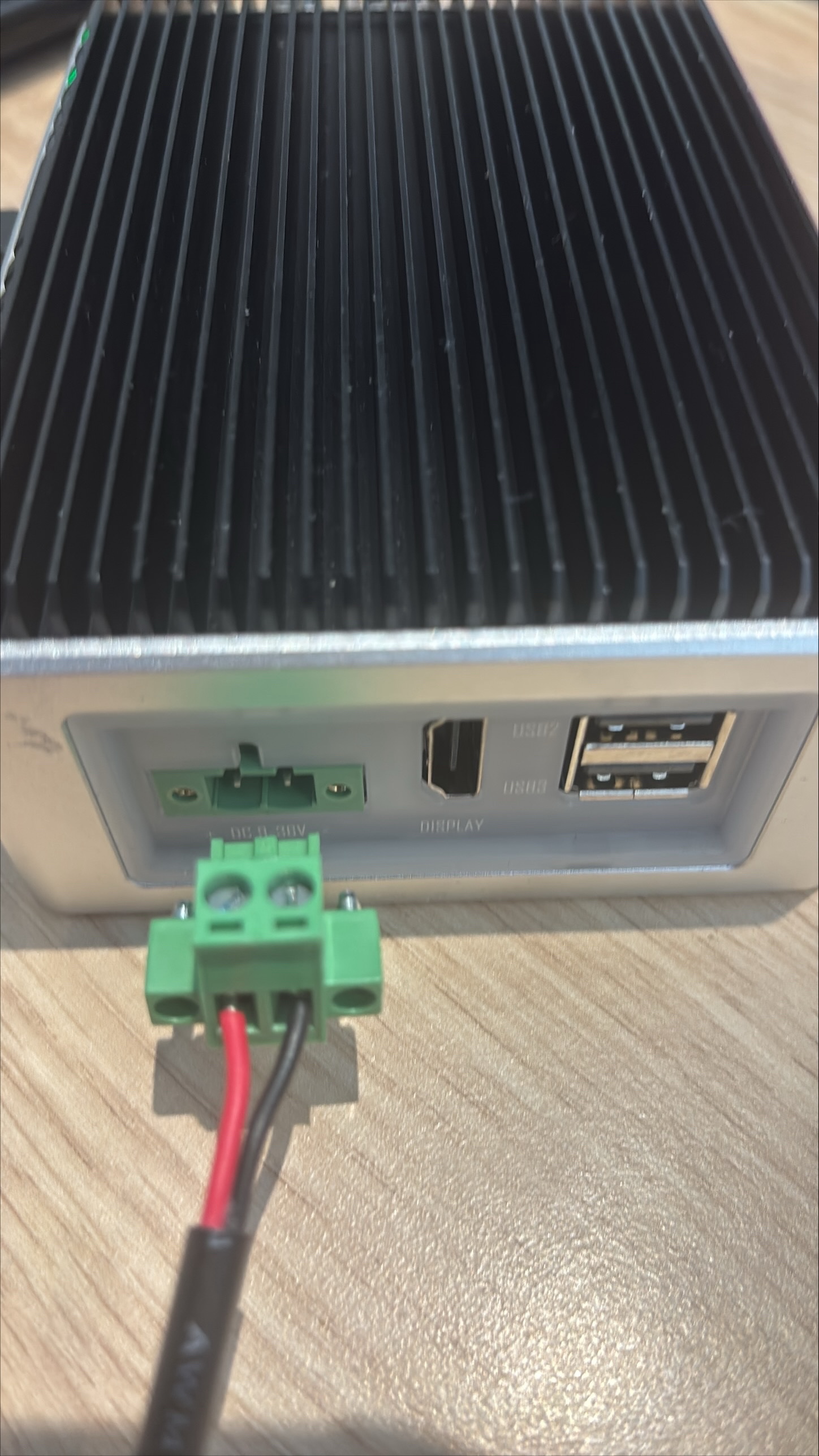

• External power supply connected to the 2-pin green power connector. This connector is not included in the package and must be purchased separately.

             Red = +                        Black = -

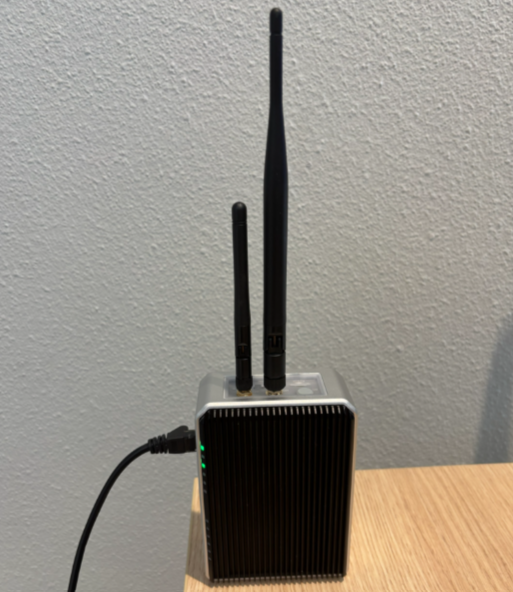

3. The gateway will start booting.

• Boot time is approximately 70 seconds.
• During startup, the LEDs will display various colors and flashing patterns.

Wait until the User LED (3rd from above) on the device starts blinking blue slowly.
This indicates that the gateway is in Bluetooth Discovery Mode and ready to commission.

The USER LED indicates the current status of the Advanced Gateway. The possible LED statuses are listed below:

LED color	LED Indication	Action
	Solid green	Device is operating normally
	Orange slow blink	Device is booting
	Blue slow blink	Device is ready for commissioning
	Solid blue	Commissioning is in progress
	Cyan slow blink	Cloud or IoT Hub connection issue
	Magenta slow blink	Network connection issue
	Red fast blink	Critical failure or hardware related error path
	Loading bar animation	OTA update or decommissioning process in progress

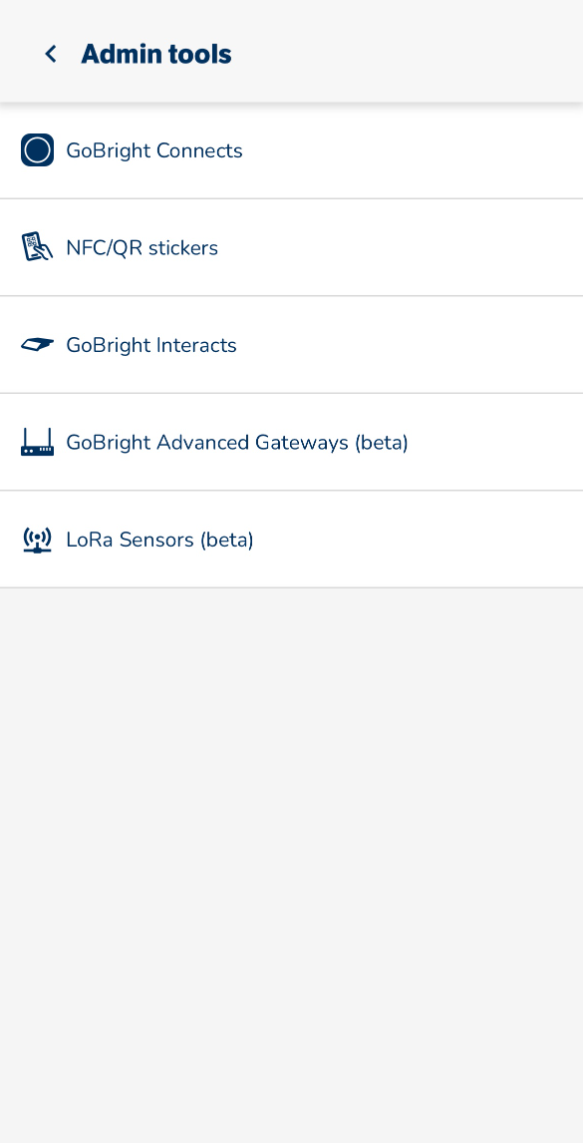

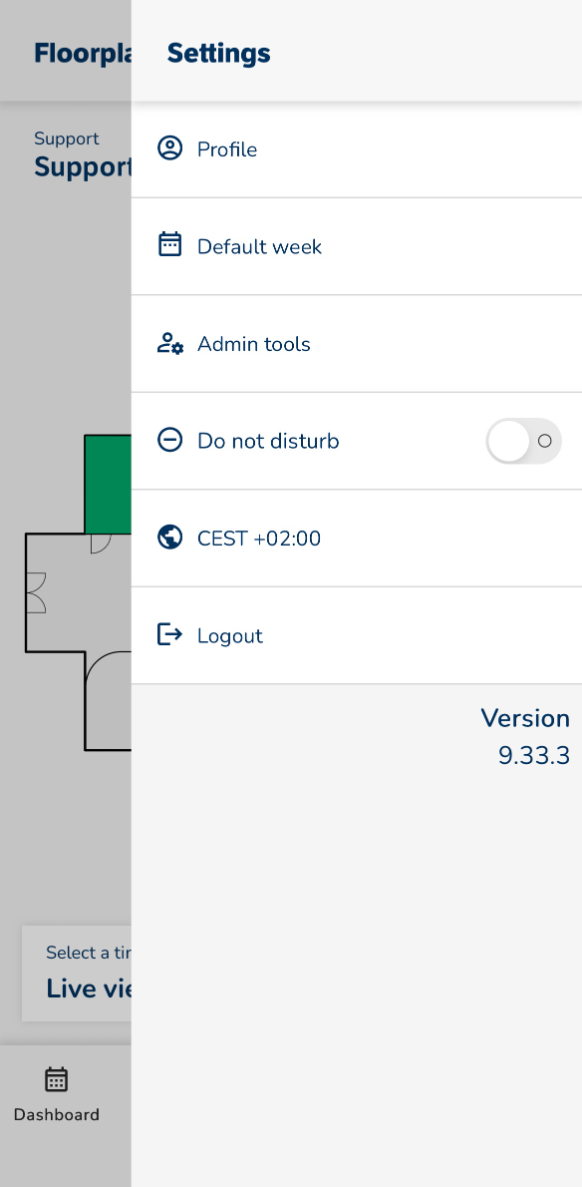

1. Open the GoBright Mobile app and log in with an account that has Administrator rights. Navigate to: Settings → Admin tools (three stripes).

2. From here, you can continue with the Advanced Gateway commissioning process.

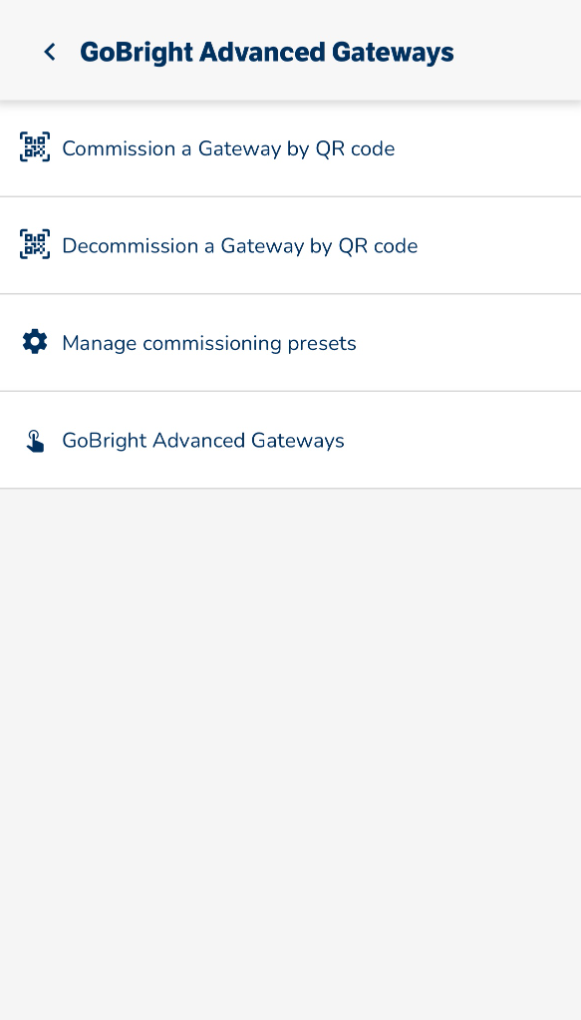

3. Select GoBright Advanced Gateways (beta)

4. Select Commission a Gateway by QR Code.

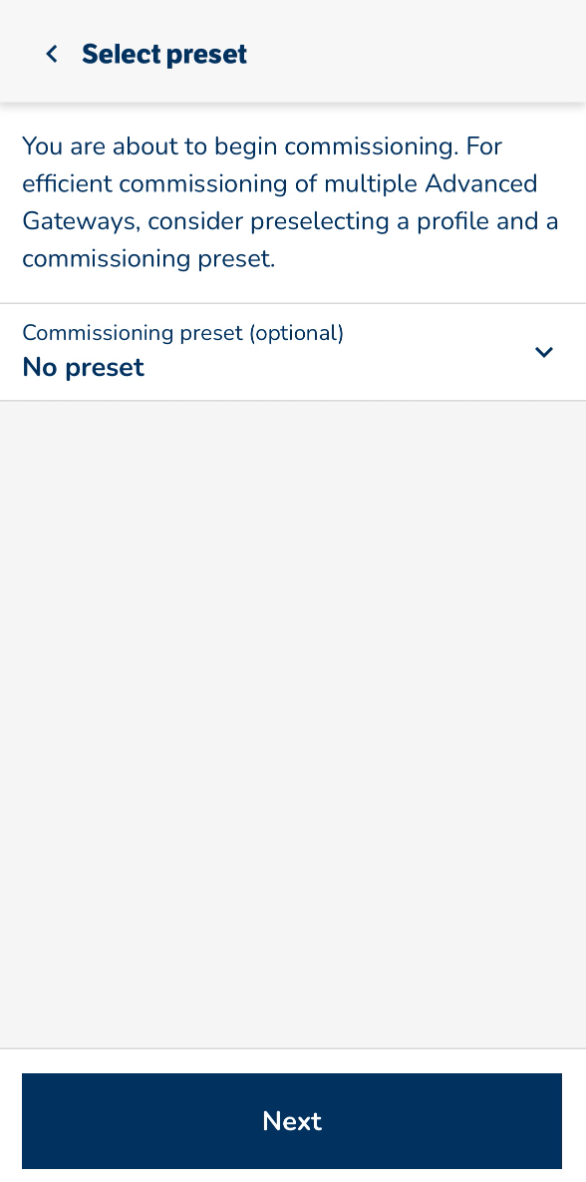

5. Choose one of the following options:

• Select a predefined Commissioning Preset (created in step 2 of this article), or
• Select No Preset to configure the device manually.

6. Press Next to continue.

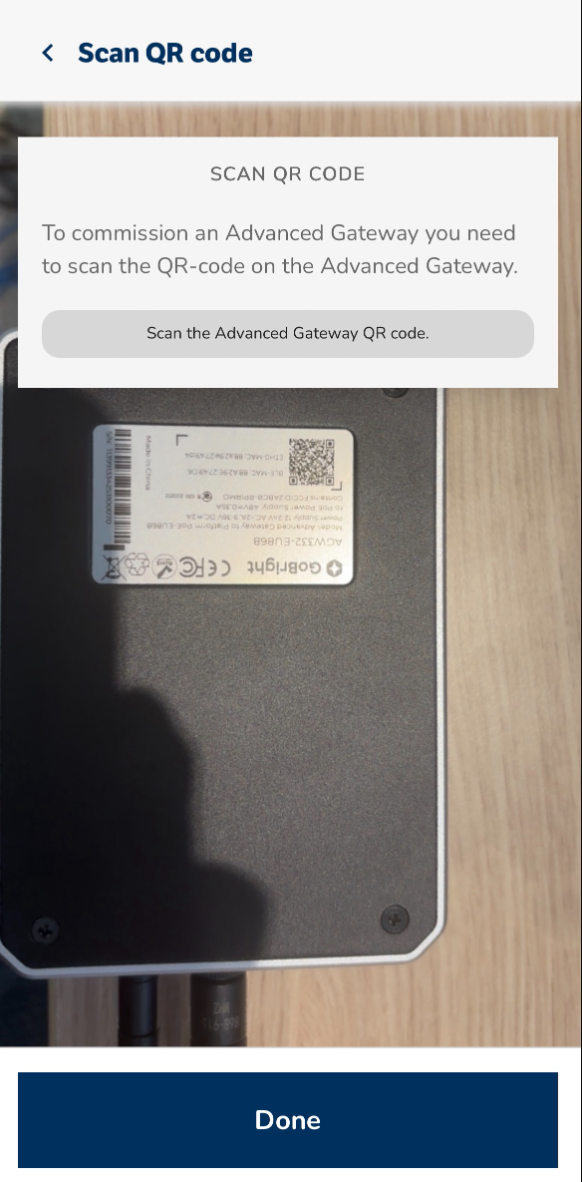

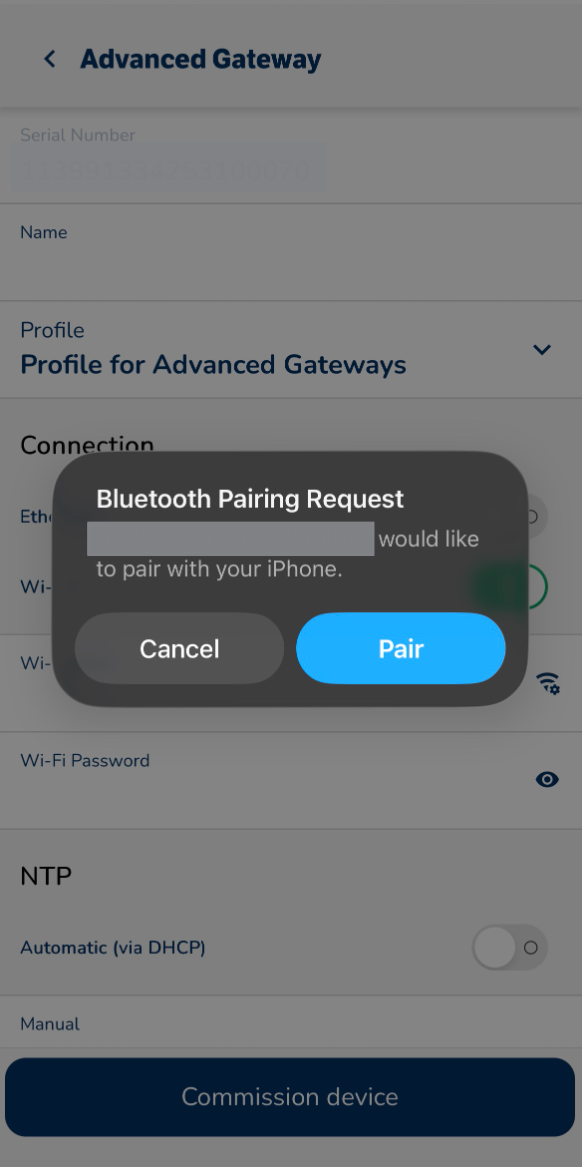

7. Scan the QR code located on the sticker of the Advanced Gateway. If prompted, click on 'Pair' to allow the GoBright app to access Bluetooth and communicate with nearby devices to continue the commissioning process.

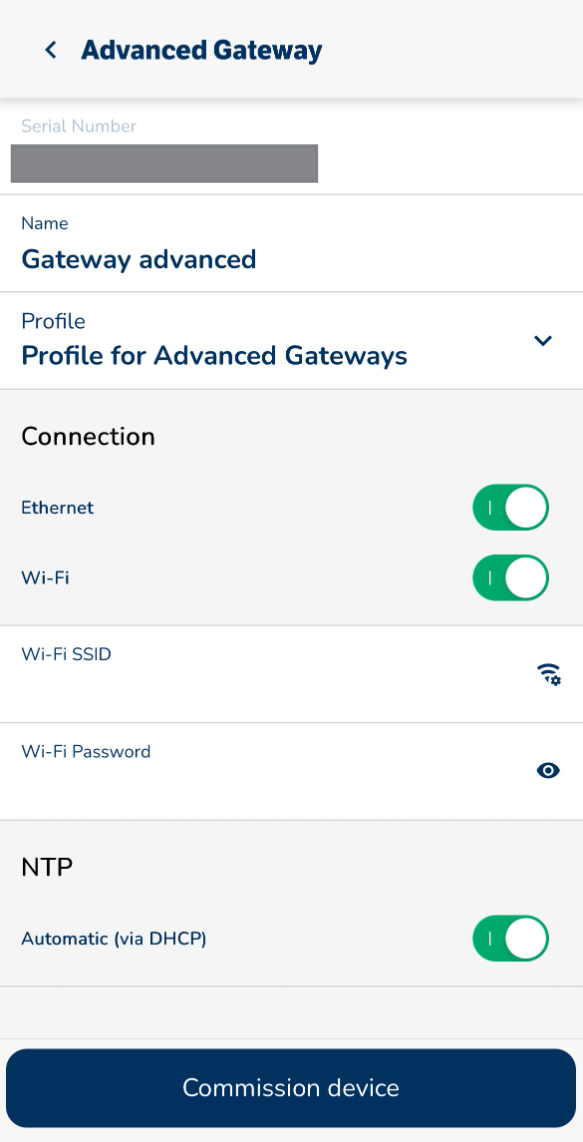

8. Configure the Advanced Gateway settings.

Fill in the filed for the Gateway name and select a preferred profile. If you have selected a predefined Commissioning preset (Step 2 - Commissioning presets), the other fields will be already completed. If not, you can fill in these fields manually.

Available settings:

• Gateway Name – Enter a recognizable name for the device.
• Preferred Profile – Select the profile to be applied to the Advanced Gateway.
• Connection Type – Select the required connection method:
  • Ethernet
  • Wi-Fi
• Wi-Fi Settings (when Wi-Fi is selected):
  • SSID – Enter the network name.
  • Password – Enter the Wi-Fi password.
• NTP Server – Select the time synchronization method:
  • Automatic
  • Manual – Enter the required NTP server address.

9. Once all settings have been configured, select Commission device to start the commissioning process.

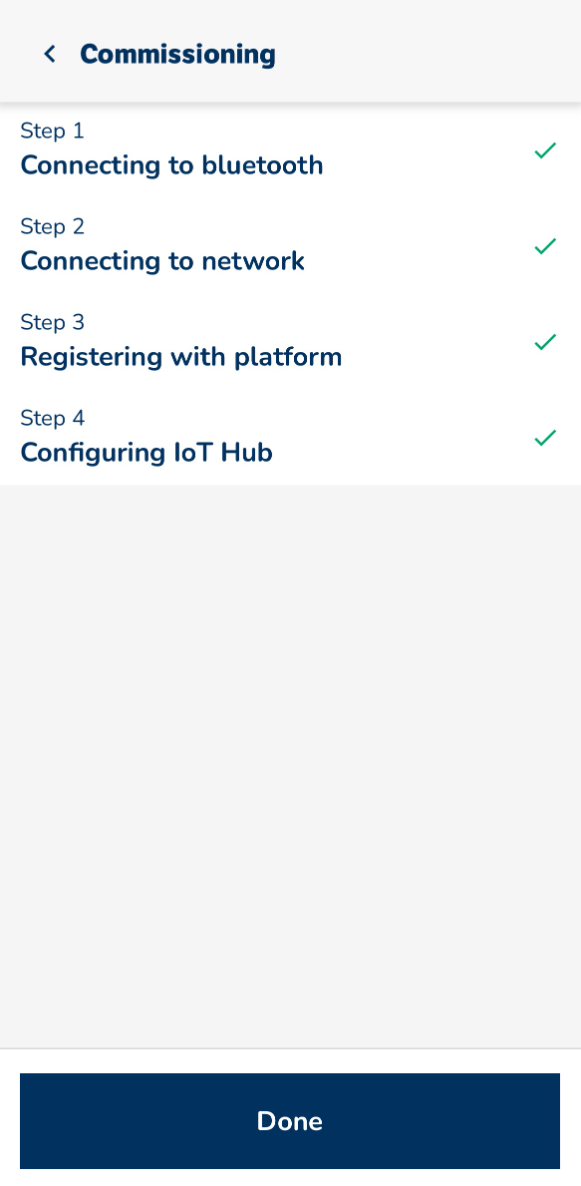

10. Automatic Commissioning Process - The app will automatically perform the following four steps to complete the commissioning process:

Each step is automatically checked and confirmed with a green checkmark when completed successfully. Once all steps are completed, press Done to finish the commissioning process.

Navigate to: Settings → Admin Tools → GoBright Advanced Gateways (beta) → GoBright Advanced Gateways

In the GoBright mobile app you can only see the following information:

• Serial Number
• Gateway Name
• Selected Profile

Navigate to: Settings → Devices → Gateways

The device will be listed with the device type Advanced Gateway.

In the GoBright portal, the following information is available for the commissioned Advanced Gateway:

• Serial Number
• Gateway Name
• Selected Profile
• Application Version (Firmware) and
• Firmware OTA (Over-the-Air) Update Options
• Connection Status
• IP Address
• MAC Address
