The Logicdata Control box shares the heigh information to the Interact and it controls the attached electric legs. The direct interaction of the Interact with heigh adjustable desks can be achieved by connecting the Interact Expansion box to the control box of the heigh adjustable desks.
For installation instructions refer to the article Logicdata Control Box - Installation instructions
Items needed
This is a list of the necessary items if you want to connect the Interact to a heigh adjustable desk:

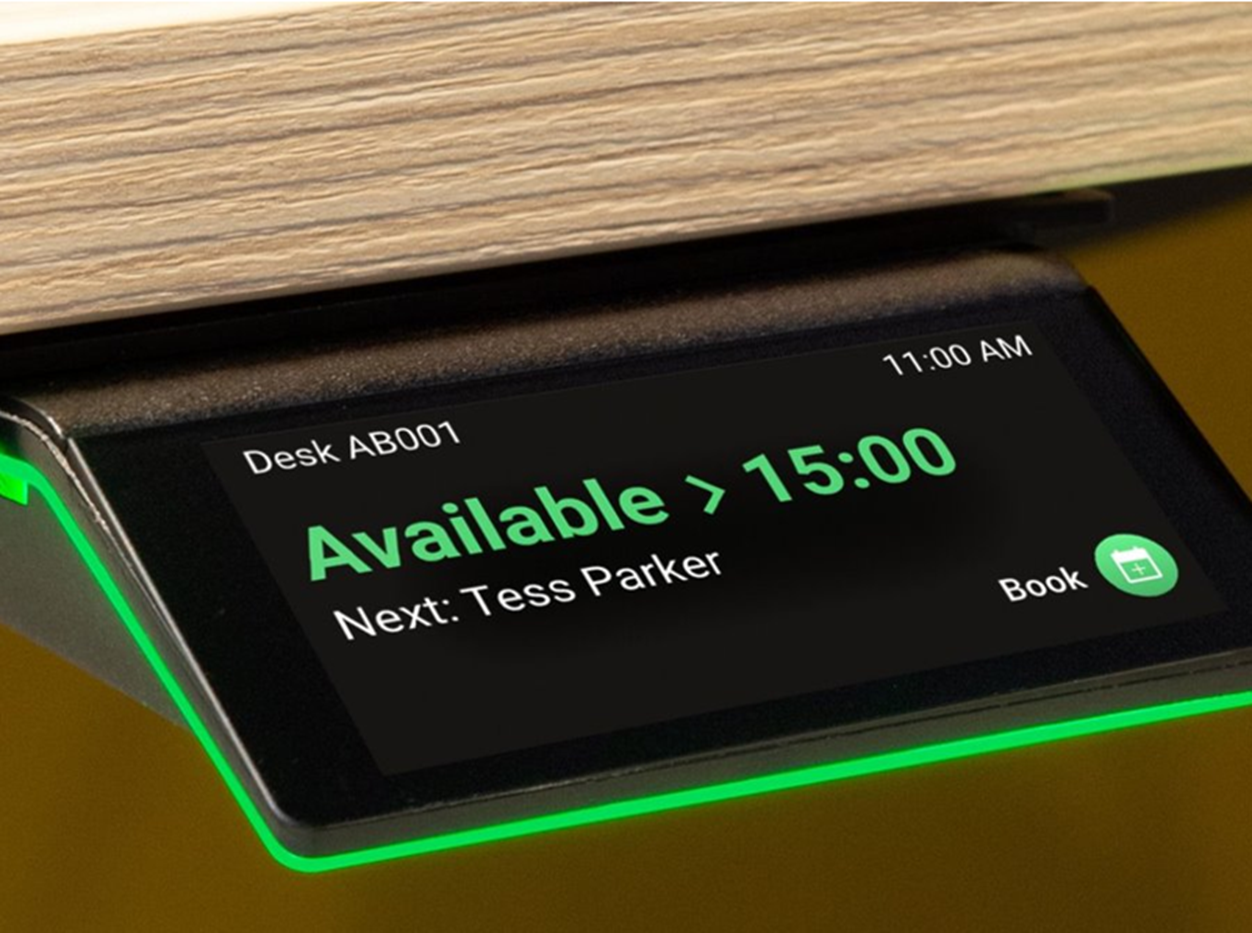

- Interact device

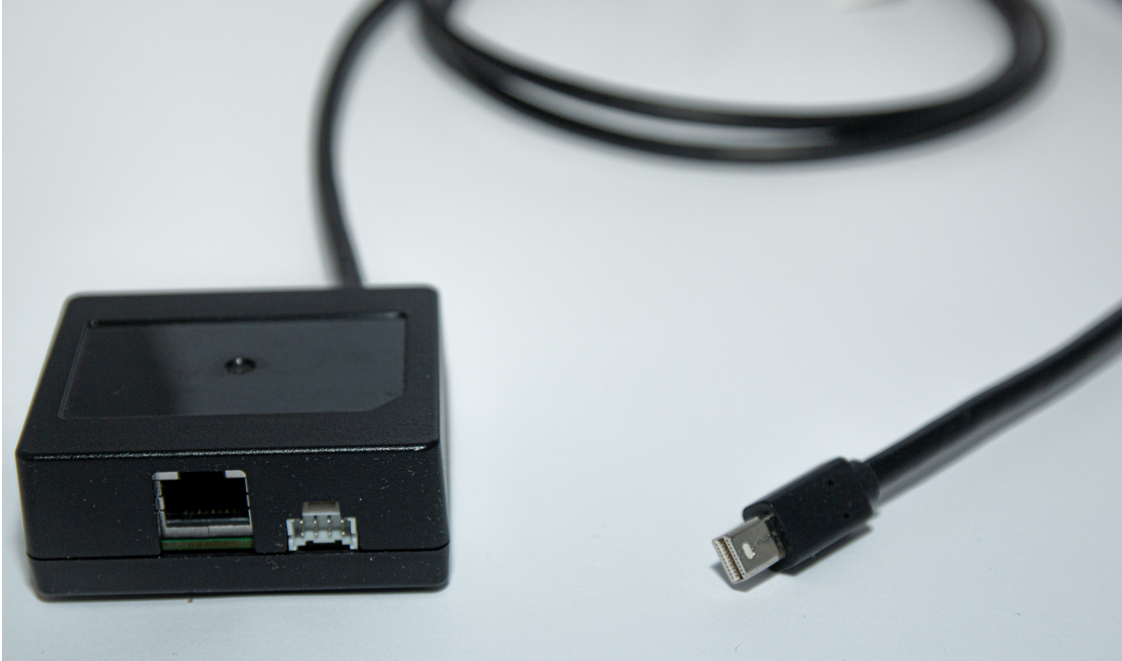

- Expansion box

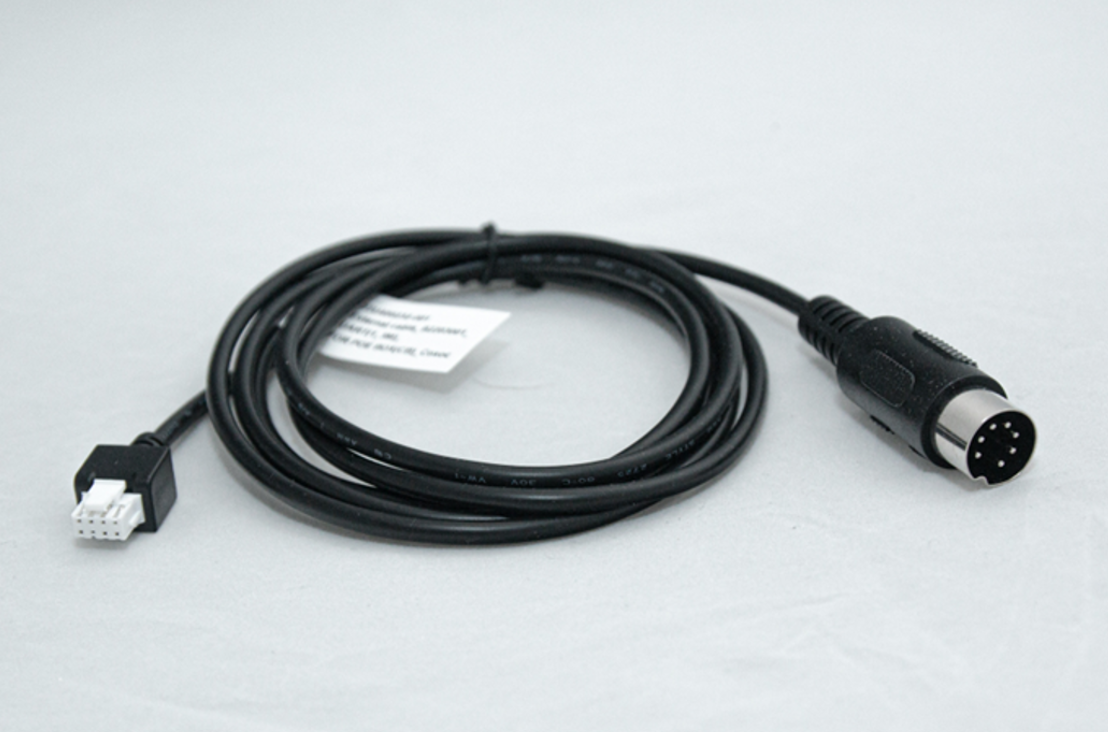

- Cable to connect the Logicdata control box to the GoBright expansion box
- Power adapted for the Interact. Please check the article Interact Accessories.
Depending on the desk control box model, the list might differ, and you may also need:

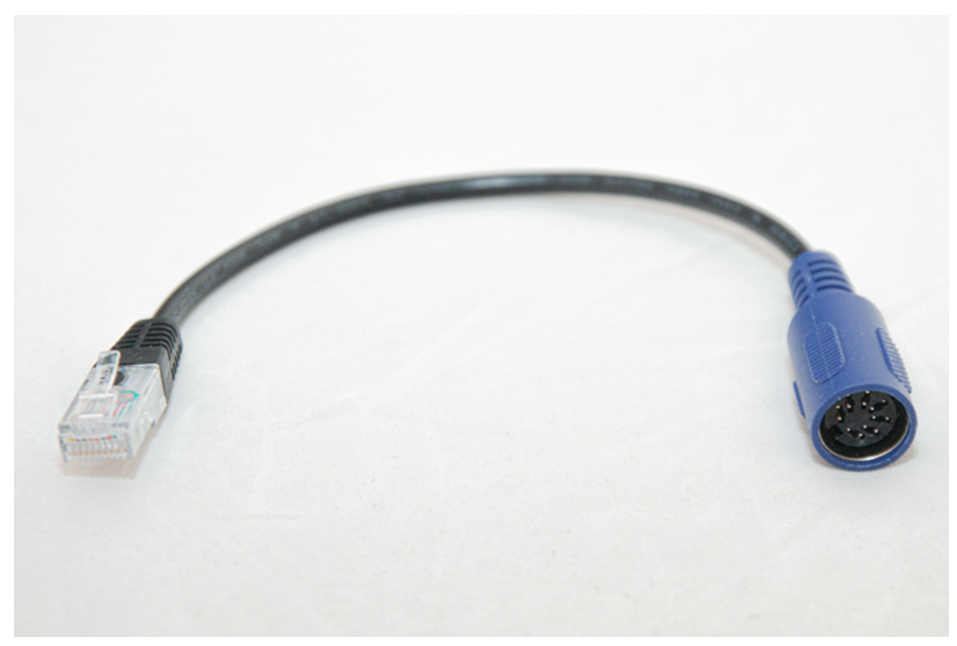

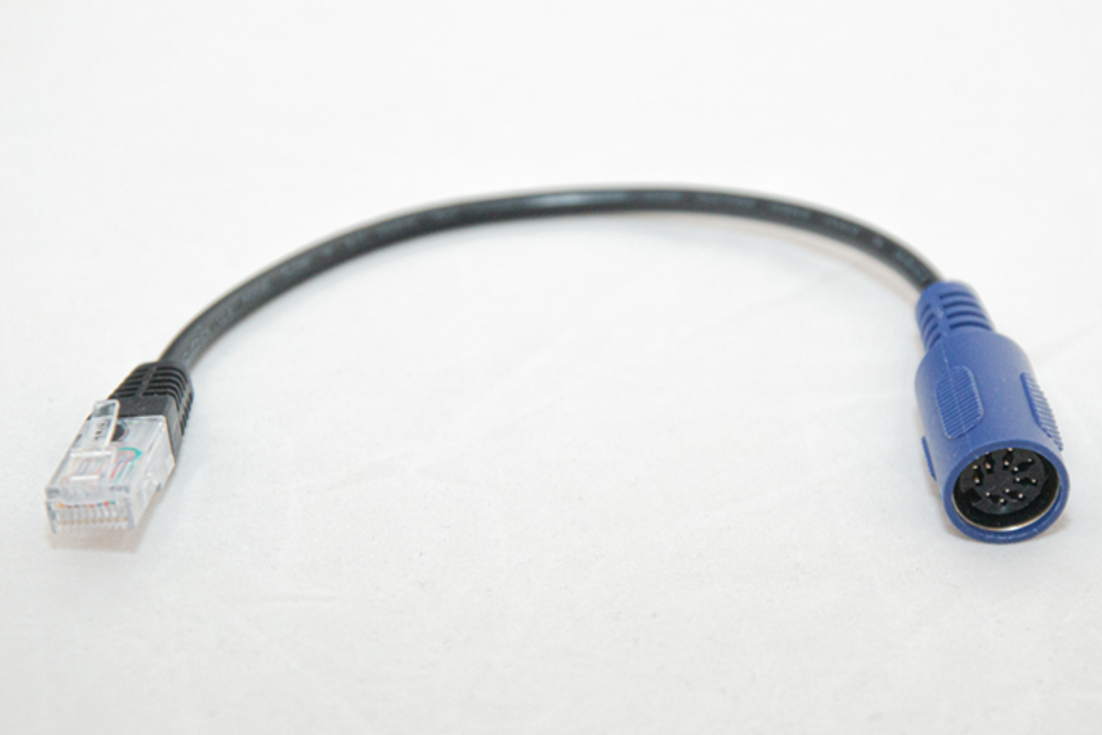

- DIN Converter cable
The DIN converter cable is an addition to the regular DIN cable to connect the Logicdata control box to the GoBright expansion box, facilitating the height adjustment of the desks.

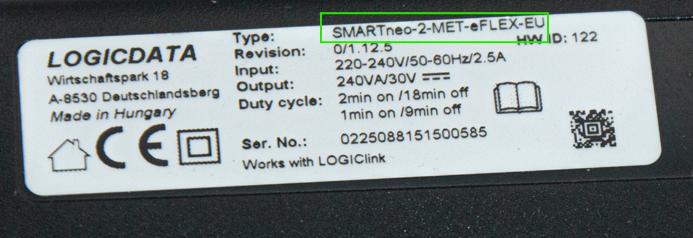

Supported models
With the following Logicdata CB Desk DIN models, the desk control box doesn't supply power to the GoBright Interact connected through the GoBright expansion box. In these cases, the adapter for the Interact to provide power is needed.
| Model | Power supply for the Interact from the Control Box | DIN Converter cable |
|---|---|---|
| Compact | No | Not needed |
| Smart Neo 2G | No | Not needed |
| Smart Neo 3G | No | Yes1) |
1) The DIN Converter cable is needed with the CB model Smart Neo 3G. This DIN cable connects the LOGICDATA CB control boxes to the GoBright expansion box along with INT1-Cable-LDCD, enabling height adjustment of the desk via the GoBright Interact. It refers to a standardized connector that is needed for control boxes type 3G. This DIN converter cable can be purchased at LOGICDATA.

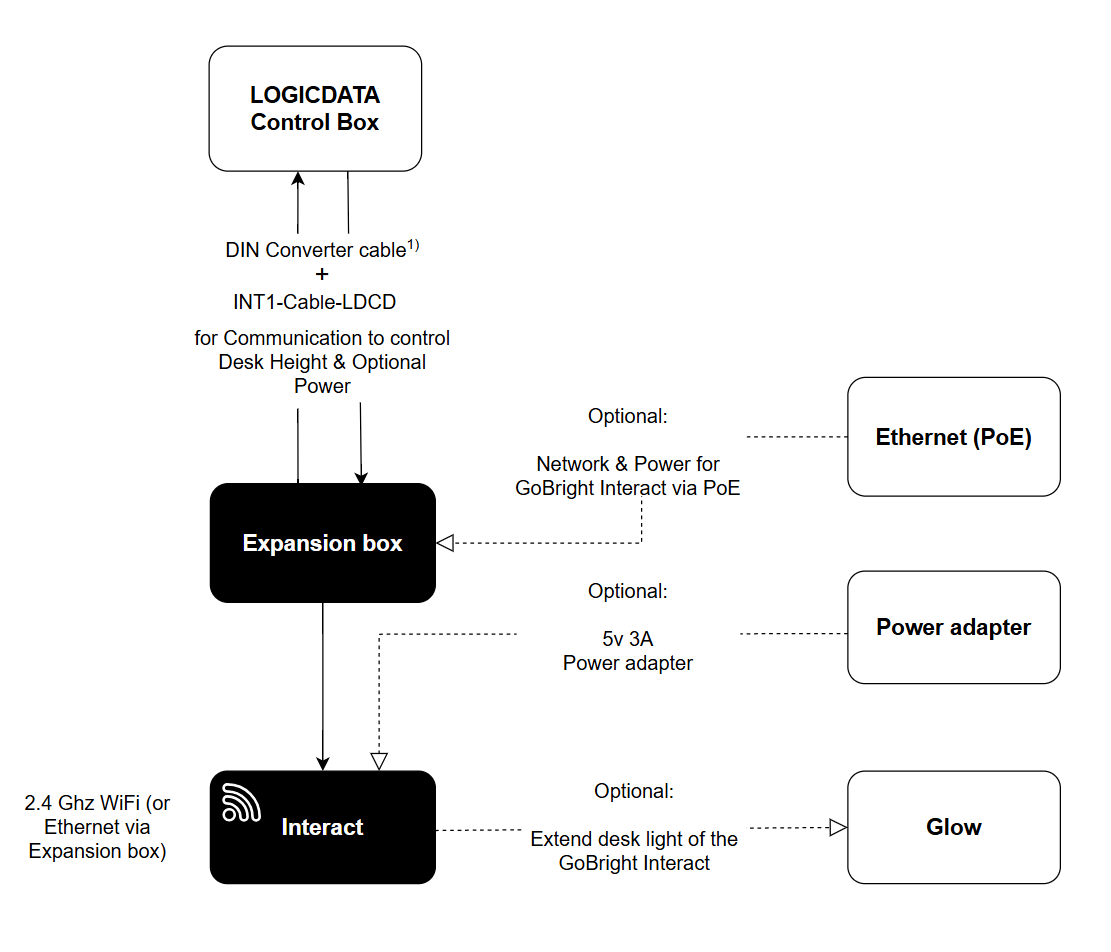

Installation scheme
Purchasing
To purchase this combination of products, please see the article numbers of our price list to the products:
INT-1 Interact Booking Device
INT1-POE-DESK PoE and Desk Control Expansion Box for Interact Device
INT1-ADAPT-MULTI Power Adapter for Interact (EU/UK/US plug)
INT1-CABLE-LDCD LOGICDATA CB Desk Control Cable for Interact Expansion Box
DIN Cable1)
1) DIN Converter cable needed only with the Control Box model Smart Neo 3G. The DIN converter cable can be purchased at LOGICDATA.
Purchasing note:
1. INT1-CABLE-LDCD LOGICDATA CB Desk Control Cable for Interact Expansion Box can be purchased in GoBright.
2. Blue DIN cable for the Logicdata actuator should be purchased directly from Logicdata.
If the control box you have is not on the list, please contact us on support@gobright.com
Note: If the possible error message 'No desk detected' appears on your Interact, please check the article 'No desk detected' on the Interact linked with Logicdata CB for more information.
